# Setup errors

Fix the most common errors printed by the Active Directory scan script when it fails.

## Reading the script output

Most errors come from an endpoint (workstation or server) that does not meet the [prerequisites](/prevention-tools/ad-scan/setup.md#prerequisites). The script output says which one:

* The script runs 10 numbered checks and prints `OK` or `NOK` for each, then a `Mandatory issues` summary. The `NOK` line usually says what to fix.
* If the window closed, open the log file `C:\Temp\Stoik\Stoik_ADScan_<date>.log`. It is kept when the run fails.

## Troubleshooting

<details>

<summary>"Script download age: NOK", "Token expired" or "400 Bad Request"</summary>

The script is more than 24 hours old (check 5 shows its age in hours). Download a new one from Stoïk Protect.

</details>

<details>

<summary>"Domain-joined: NOK"</summary>

The machine is not part of the domain (a server in a workgroup, a personal laptop). Use a domain-joined machine.

If you have no on-premise Active Directory at all (Entra ID only), the AD scan does not apply: use the [Cloud scan](/prevention-tools/cloud-scan.md).

</details>

<details>

<summary>"Could not create SSL/TLS secure channel"</summary>

The Stoïk API only accepts TLS 1.2 and 1.3 with recent ciphers. Two usual causes:

* **Old Windows:** Windows Server 2012 and many Windows Server 2016 machines do not offer these ciphers. The easiest fix is to run the script from a more recent domain-joined machine. It does not have to be the domain controller.
* **SSL inspection** on your proxy or firewall: see [PingCastle cannot be downloaded or the report cannot be uploaded](#pingcastle-cannot-be-downloaded-or-the-report-cannot-be-uploaded).

On Windows Server 2016, you can also enable the ciphers from a PowerShell opened as administrator, then run the script again:

```powershell
"TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384", "TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256" | ForEach-Object { Enable-TlsCipherSuite -Name $_ }
```

</details>

<details>

<summary>The script closes automatically after execution</summary>

This means that script execution is restricted on the terminal. Here is a three-step solution:

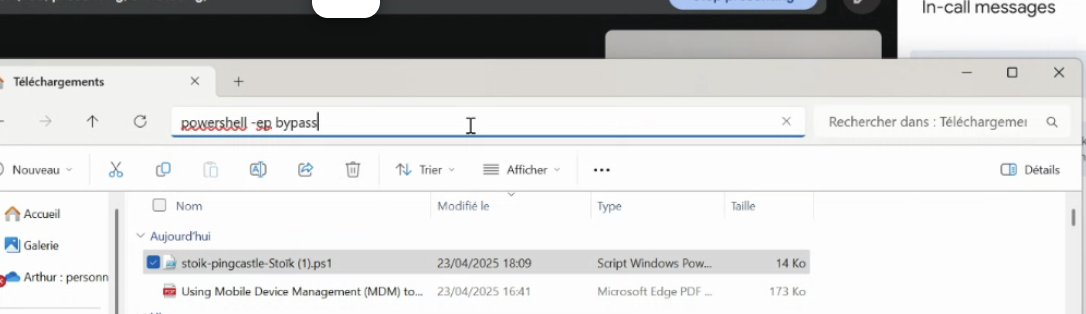

1. Download the script and go to `Downloads`, then type `powershell -ep bypass` in the search bar:

   <figure><img src="https://2582414397-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaDGGQ49Oui29Ft0kJjSm%2Fuploads%2FeQr2oHMVVuuNE3wGWQmA%2Fadscan-powershell-ep-bypass.png?alt=media&amp;token=acd7b9c4-f9e0-4b13-a1ce-d86c228bdff3" alt=""><figcaption></figcaption></figure>

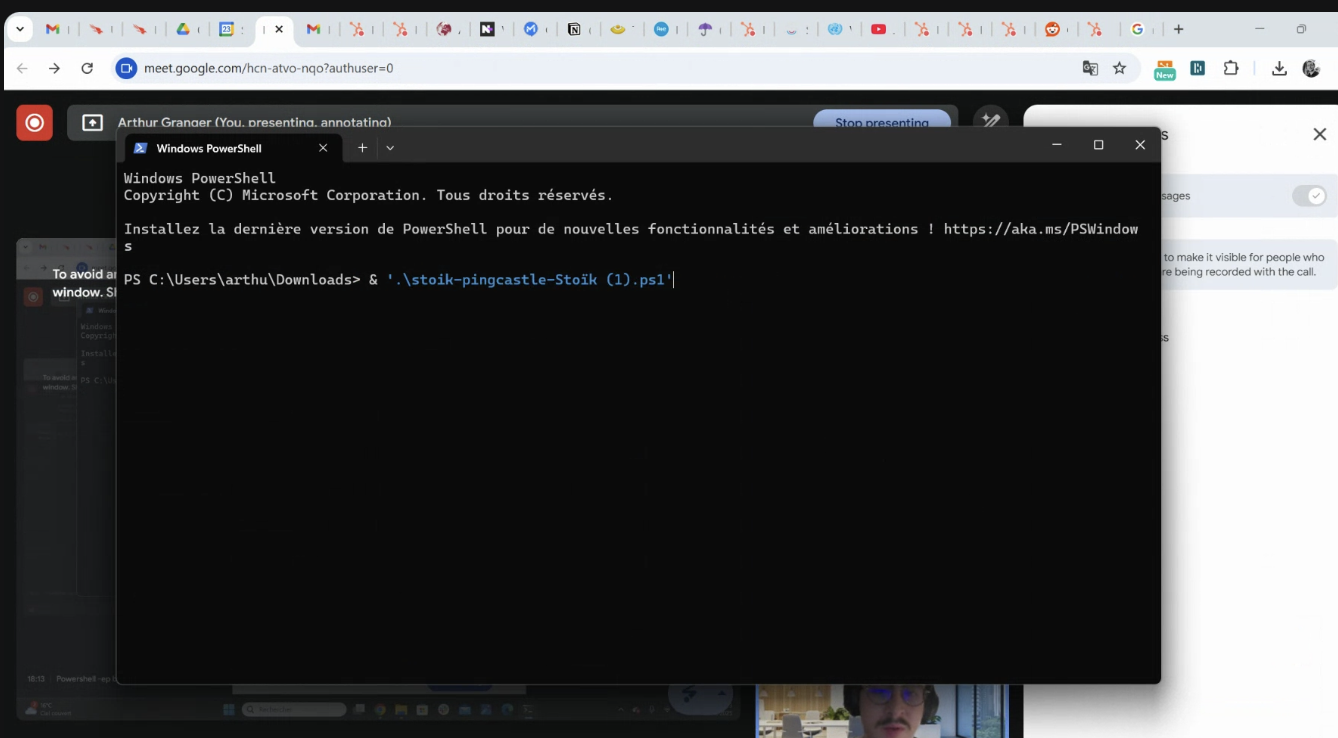

2. The PowerShell console should open automatically. Once it has opened, type `& '.\` then press Tab until the correct script file is visible:

   <figure><img src="https://2582414397-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FaDGGQ49Oui29Ft0kJjSm%2Fuploads%2F5YiH2kagFiINDZVXSxnR%2FCapture%20d%E2%80%99e%CC%81cran%202026-07-03%20a%CC%80%2014.46.44.png?alt=media&amp;token=f7205bb2-f424-46c9-bec7-1088ab7906d1" alt=""><figcaption></figcaption></figure>
3. Press Enter.

</details>

<details>

<summary>PingCastle cannot be downloaded or the report cannot be uploaded</summary>

The machine must reach the three hosts listed in the [prerequisites](/prevention-tools/ad-scan/setup.md#prerequisites) over HTTPS, without SSL inspection. A proxy that inspects HTTPS traffic to the S3 buckets breaks the download link, even when DNS and TCP connectivity look fine. If that is already done:

* **The `PingCastle.exe` download stalls, then fails with 403** (or the config file downloads but not the `.exe`): a web filter blocks executable files. `PingCastle.exe` is about 230 MB.
* **"Upload failed for ad\_hc\_….xml"** (403 or "Unable to connect"): the firewall blocks uploads to the reports host. If only the `.html` upload failed, results show up but the report cannot be downloaded.
* **Downloading in a browser works, the script does not:** the proxy treats PowerShell traffic differently, usually because of SSL inspection.
* **You go through a proxy:** the script uses the Windows proxy settings. To force one, run it with `-Proxy "http://proxy:8080"`.

To test from the same machine, this command must answer `{"status":"ok"}`:

```powershell
Invoke-WebRequest https://api.prod.ad-scan.cyber.stoik.io/v1/public/health
```

</details>

<details>

<summary>"PingCastle has stopped working" or "No report files found"</summary>

PingCastle is an Active Directory audit tool, so antiviruses often flag it (for example as `Riskware.PingCastle`). Other signs: PingCastle stops with an exit code, or a check mentions that the antivirus may have deleted a file.

* Exclude the script, `PingCastle.exe` and the `C:\Temp\Stoik` folder, or pause the EDR during the scan.
* If your EDR is managed by Stoïk MDR, contact <protect@stoik.io>.
* To help Stoïk investigate, run the script again with `-PCDebug -KeepLog -NoDelete` and send the logs to <protect@stoik.io>.

</details>


---
